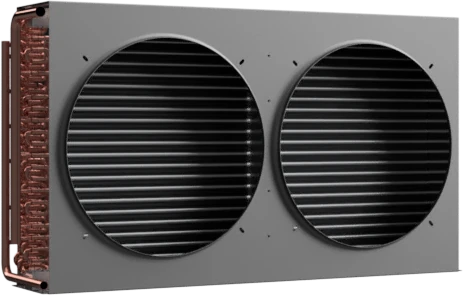

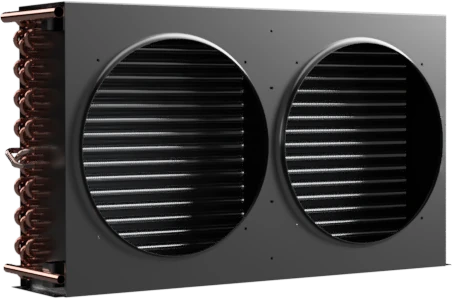

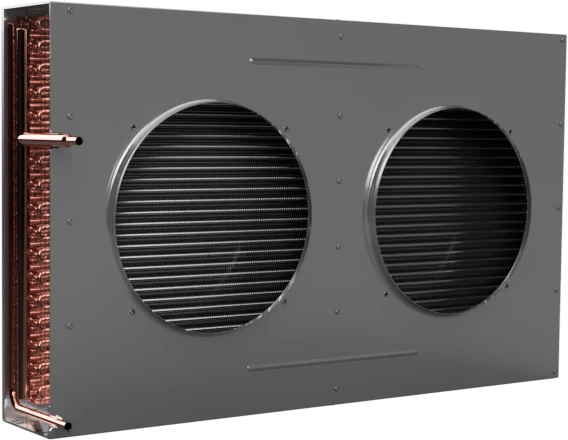

Air Cooled Condensers HC & LC Series

Elvicon's Air-Cooled Condensers are designed to cover a wide range of refrigeration applications in both commercial and industrial sectors, with capacities ranging from 0.4 kW to 48 kW*.

Technical Specifications

• The Condensers are constructed using 3/8” copper tubes arranged in a triangular configuration with geometry 25 mm x 21.65 mm, combined with corrugated aluminum fins. This design ensures excellent thermal conductivity, high heat transfer efficiency, and uniform airflow distribution.
• Fin spacing:4.0 mm for the HC series2.5 mm for the LC series
• Each condenser undergoes fine leak testing using 100% helium via the sniffing method, ensuring the required level of tightness and operational reliability.
• The housings are made from galvanized steel sheet, offering enhanced protection against mechanical stress.
• All models are finished with electrostatic powder coating in RAL 9005 (black).

Custom colors from the RAL palette are also available upon request.

* Based on specific air flow and pressure drop, given in our catalogue.
